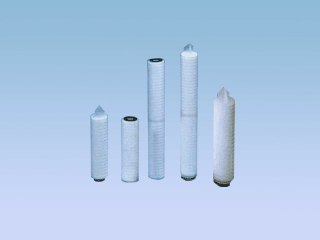

| Pleated Absolute Filter is designed for high flow rate,
great efficiency, superior precious and absolute pore
rating application. Used in processing of precise processing
for chemicals and water filtration. |
| Material |
Polypropylene
Polysulfone
PTFE
Nylon |
| Length |
2, 3,
6, 10,
20, 30,
40 inch |
| Micron Rating |
0.03, 0.05,
0.1, 0.2,
0.5, 0.8,
1, 2,
3, 4,
5, 10,
20, 30,
40, 70
µm |
| Adapter |
DOE, 2-222 (Flat), 2-222 (Fin), 2-226 (Flat), 2-226(Fin)
and various special spec
|
| Application |
Electronics industry, Semiconductor industry, Opto-Electronics
industry, LCD process, Food industry, ultra purification
water, Pharmaceutical process, and PCW etc.
|
DOE (Double Open End)
|
2-222
O-ring with
flat end |
2-222
O-ring with fin
|
2-226
O-ring with fin
|

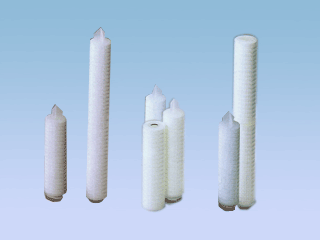

| Material |
Polypropylene |
| Micron Rating |
0.1,
0.2, 0.5,
0.8, 1,
2, 3,
4, 5,
10, 20,
30, 40,
70µm
|
| Length |
10, 20,
30, 40
inch |
Max Recommended Differential
Pressure |
95°C
—› 1.5 kg/cm2
65°C
—› 2.8 kg/cm2
20°C —› 4.1 kg/cm2 |
| O-ring Material |
Silicone, Viton,
EPDM, Buna-N
|
Back
To Top

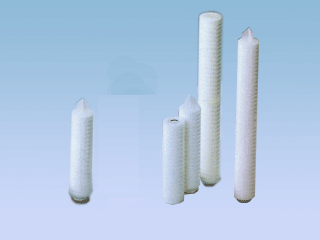

| Material |
Polysulfone |
| Micron Rating |
0.03, 0.1,
0.2, 0.45,
0.65 µm
|
| Length |
10, 20,
30, 40
inches
|
| Max Recommended Differential
Pressure |
90°C —› 1.2 kg/cm2
20°C —›
3.4 kg/cm2 |
| O-ring Material |
Silicone, Viton,
EPDM, Buna-N
|
Back
To Top

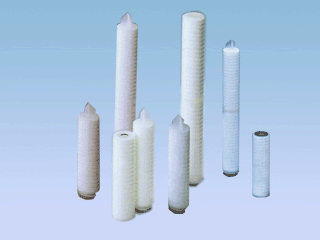

| Material |
PTFE |
| Micron Rating |
0.1, 0.2,
0.45, 0.65
µm |
| Length |
10, 20,
30, 40 inch |
| Max Recommended Differential
Pressure |
90°C
—› 1.4 kg/cm2
20°C
—› 4.1 kg/cm2 |
| O-ring Material |
Silicone, Viton,
EPDM, Buna-N
|
Back
To Top
| Material |
Nylon |
| Micron Rating |
0.03, 0.1,
0.2, 0.45,
0.65 µm |
| Length |
10, 20,
30, 40
inch |
| Max Recommended Differential
Pressure |
90°C
—› 1.4 kg/cm2
20°C
—› 3.4 kg/cm2 |
| O-ring Material |
Silicone, Viton,
EPDM, Buna-N
|
Back
To Top
|
|
|
|
|
|
|
|
|
